Description
 |
 |
 |
 |
 |
 |
 |
 |
The high performance 4500lbs Electric Winch has all the features for emergency rescue during your journey. The case is made of the toughest material which is waterproof and corrosion resistant to withstand the harsh Australian weather. No matter you are in a tropical swamp and snowy mountain, this Electric Winch will give you the best performance.
Not only its exterior, but also its functionality that differentiates us from the others. With the high tensile steel cable, your winch can pull your ATV out of the most strenuous conditions imaginable. For your maximum comfort, the package comes with both wired and wireless remote control.
FEATURES
-

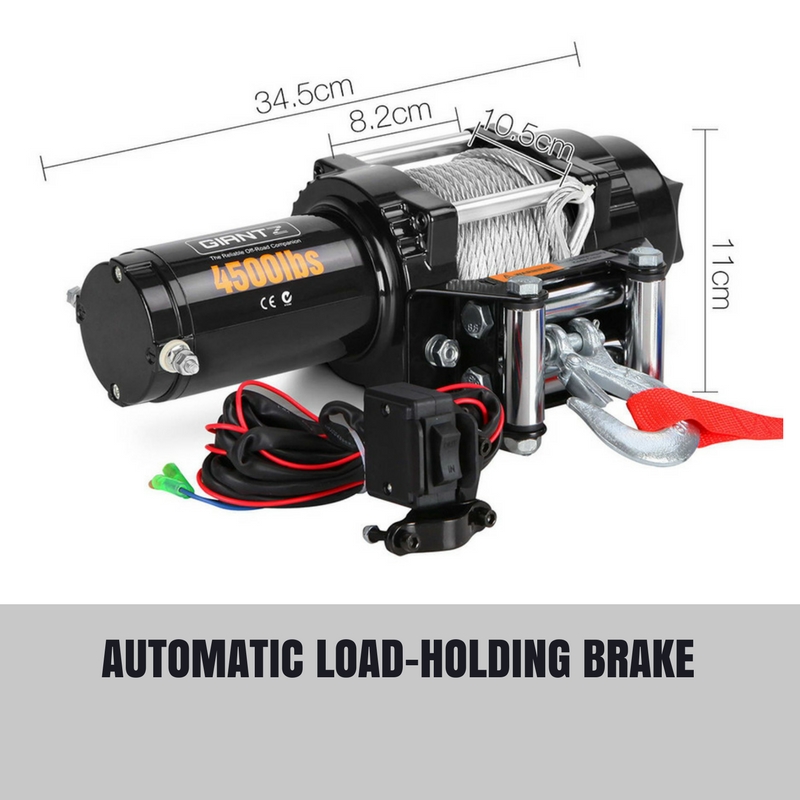

Automatic load-holding brake
-
3 stage planetary gearing system
-
Series wound motor
-
Water and mud resistant
-

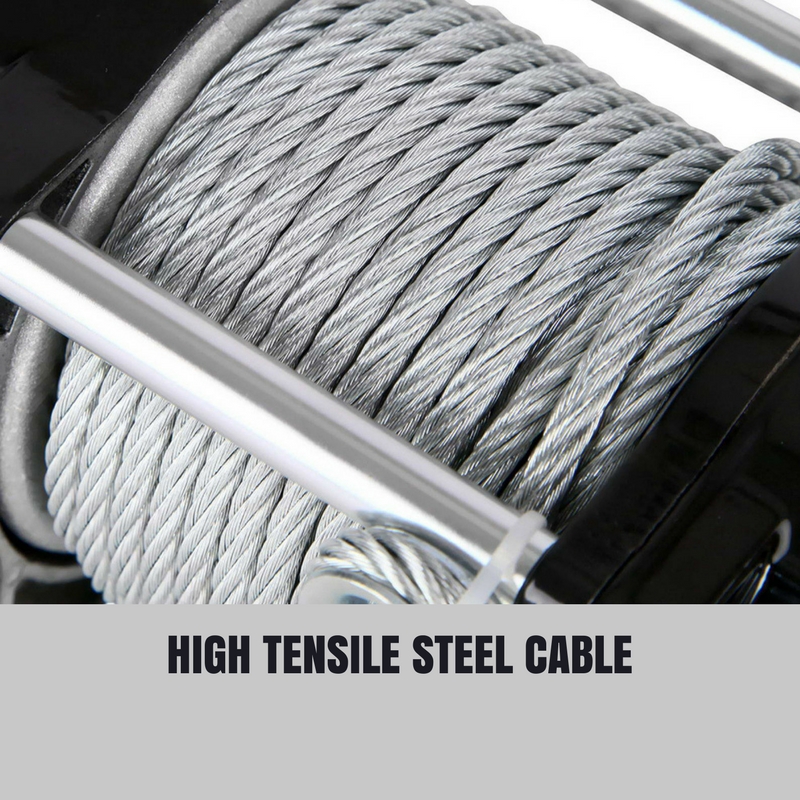

High tensile steel cable
-
4-way roller fairlead
-

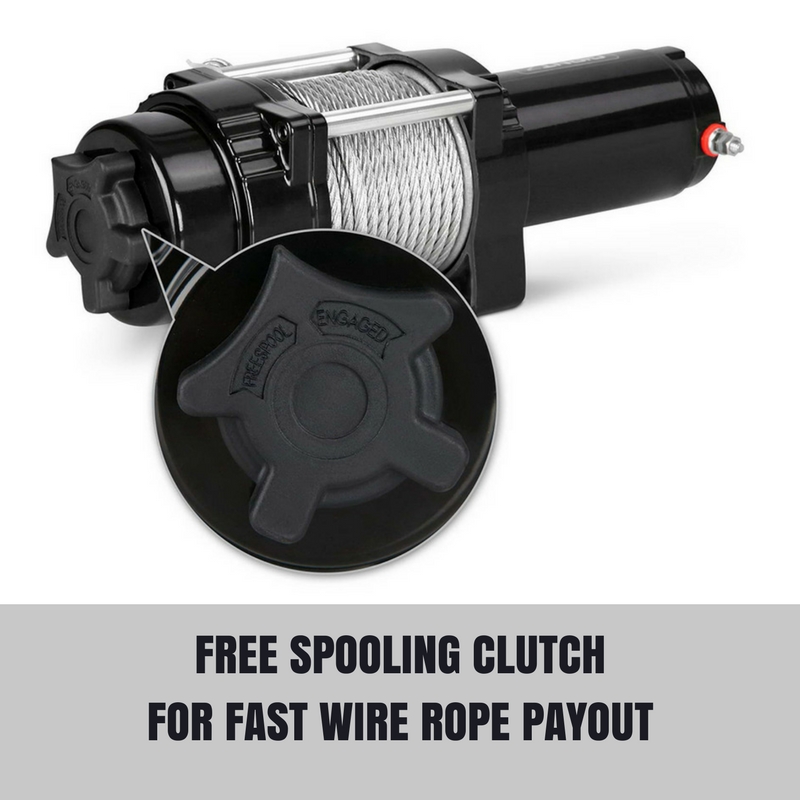

Free spooling clutch for fast wire rope payout
-

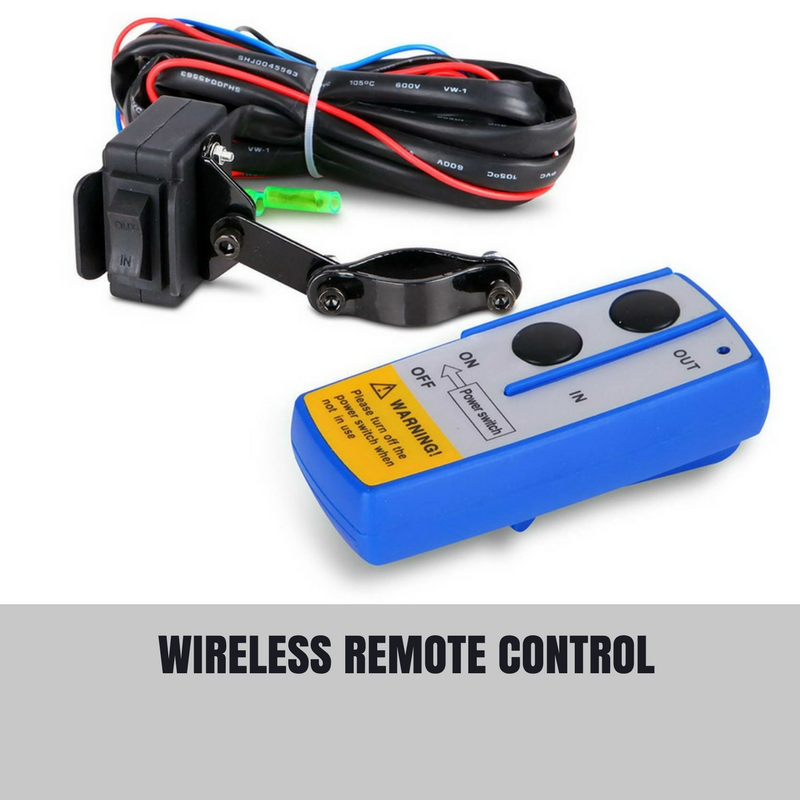

Wireless remote control
-
Voltage: DC 12V
-
Single line pulling capacity: 4500lbs (2041kgs)
-
Winch motor: 1.7HP (1.2KW) permanent magnet
-
Gear train: 3 stage planetary
-
Gear ratio: 198:1
-
Clutch: Sliding ring gear
-
Braking action: Automatic in the drum
-
Fairlead: Aluminum
-
Remote control cable: 305cm
-
Steel cable: 6.5mm x 15mSteel Cable Length: 15M* Battery wire: 1.6m
-
Motor wire: 1.1m
-
Mounting hole: 124 x 76mm
-
Drum length: 74mm
-
Dimensions: 34.5 x 11 x 11cm
-
Weight: 10.35kg
PACKAGE CONTENTS
-
1 x 4500lbs Electric Winch
-
1 x Steel Wire Rope
-
1 x Fairlead Roller
-

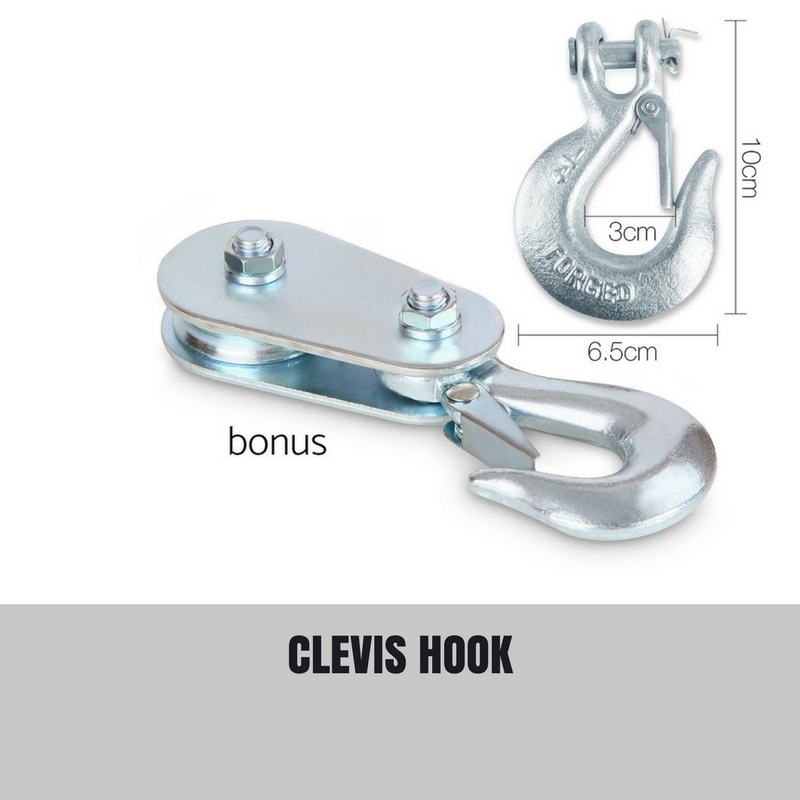

1 x Clevis Hook
-
1 x Pulley
-
1 x Wireless Remote Control
-
1 x Hand Remote Control
-
2 x Battery Wire
-
2 x Motor Wire
-
1 x Accessory Pack
-
1 x User Manual
