Description
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
The Giantz 2500W 5 Stage pressure pump is your go to pump for constant and reliable pressure. Ideal for clean or rain water, it can produce with maximum flow of 9,000L/hr. and maximum head of 61m. Designed for permanent installation as a pressurized water source, it is ideal for filling up toilets, washing machines, dishwashers, kitchen taps, showers, irrigation systems or watering the garden. Made to last with an IP rated motor, stainless steel pump body and cast iron ends, you can ensure that you get the peace of mind. This unit also includes a fully automatic pressure controller with precise pressure gauge.
FEATURES
-
Powerful 2500W self-priming multi-stage pump
-
Garden irrigation, farm irrigation & home water supply
-
100% duty cycle – Designed for continuous operation
-

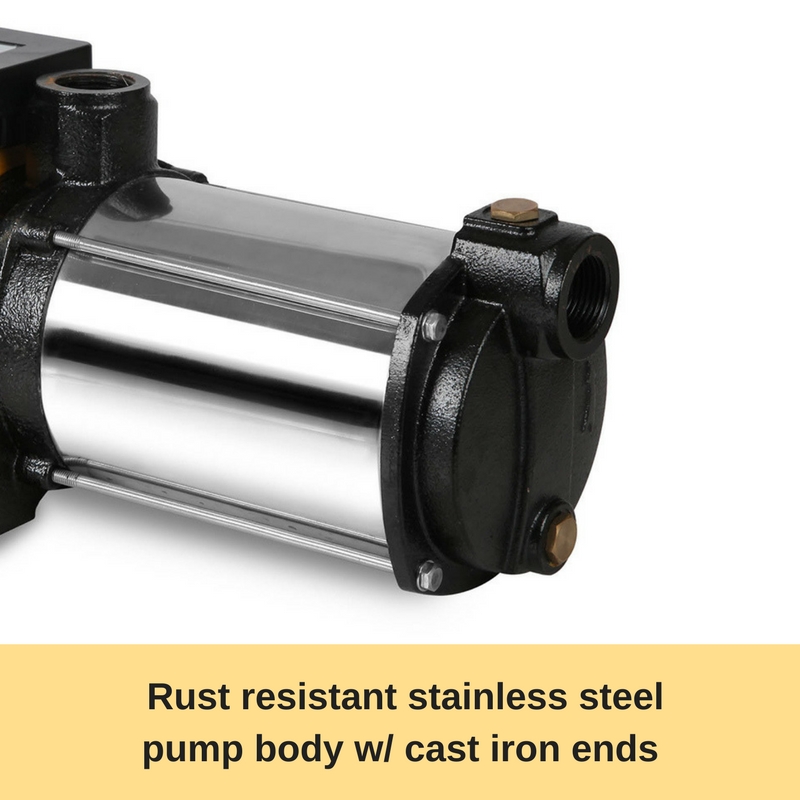

Rust resistant stainless steel pump body w/ cast iron ends
-
Fully automatic operation on/off controller
-
Huge 64m head – Perfect for applications over two stories
-
Anti-corrosive alloy motor housing, ceramic and carbon seals
-

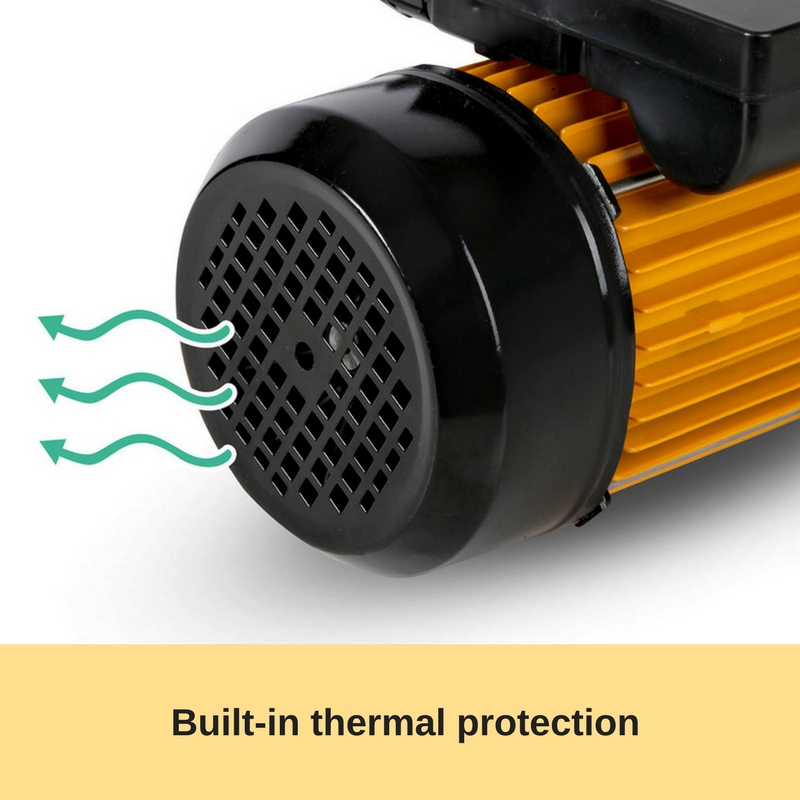

Built-in thermal protection
-
Efficient cooling system
-

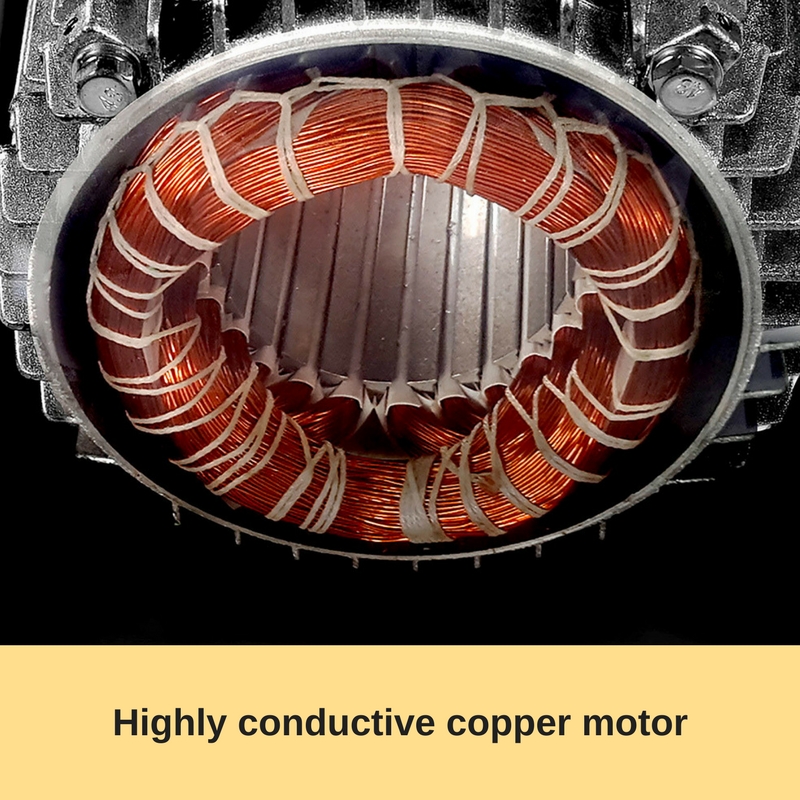

Highly conductive copper motor Efficient & low heat generation
-

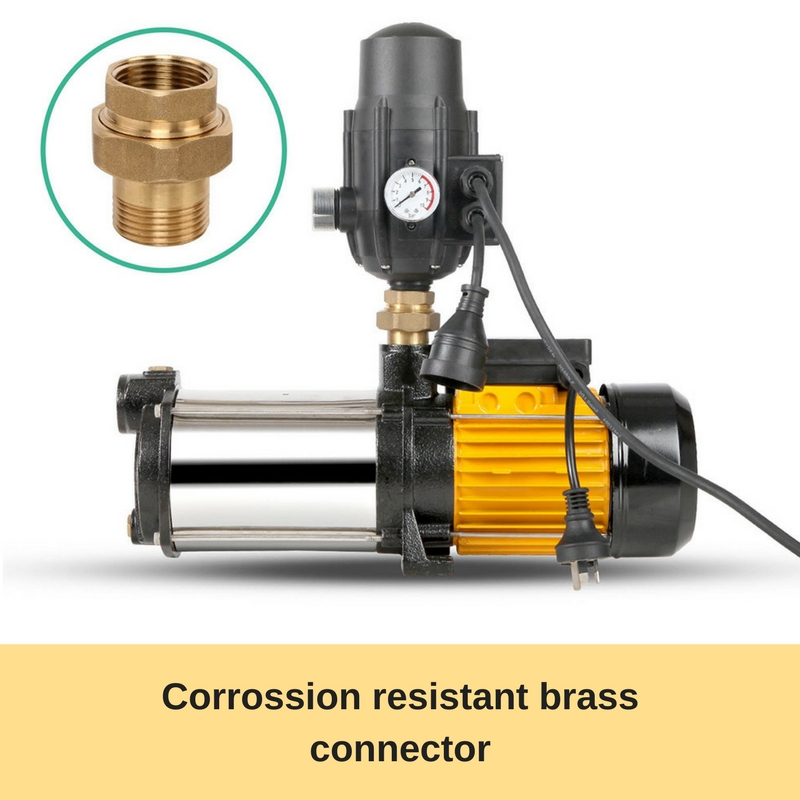

Corrosion resistant brass connector
-
Leak proof rubber ring
-

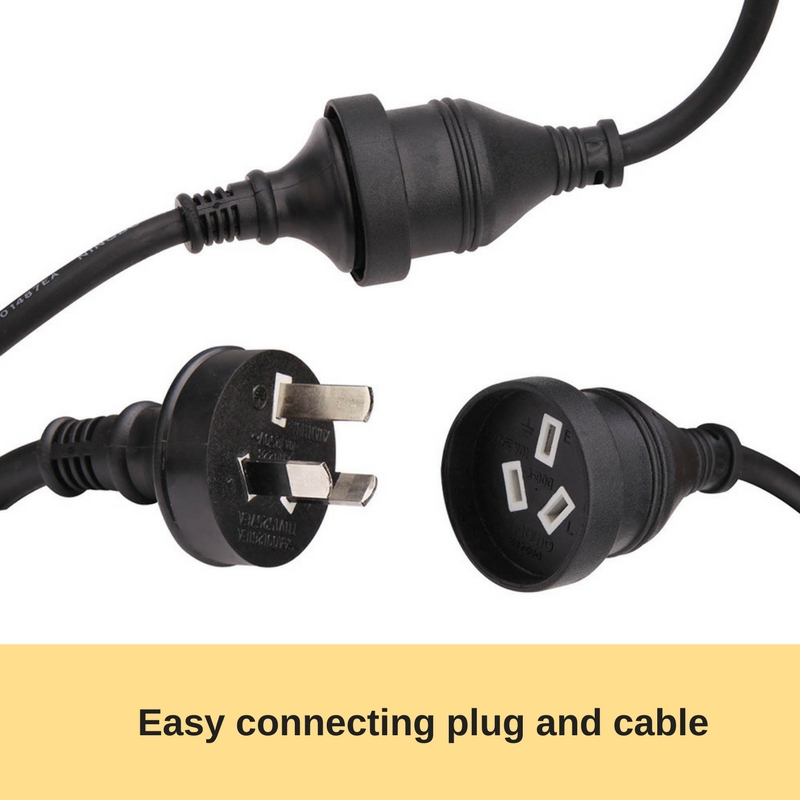

Easy connecting plug and cable
-

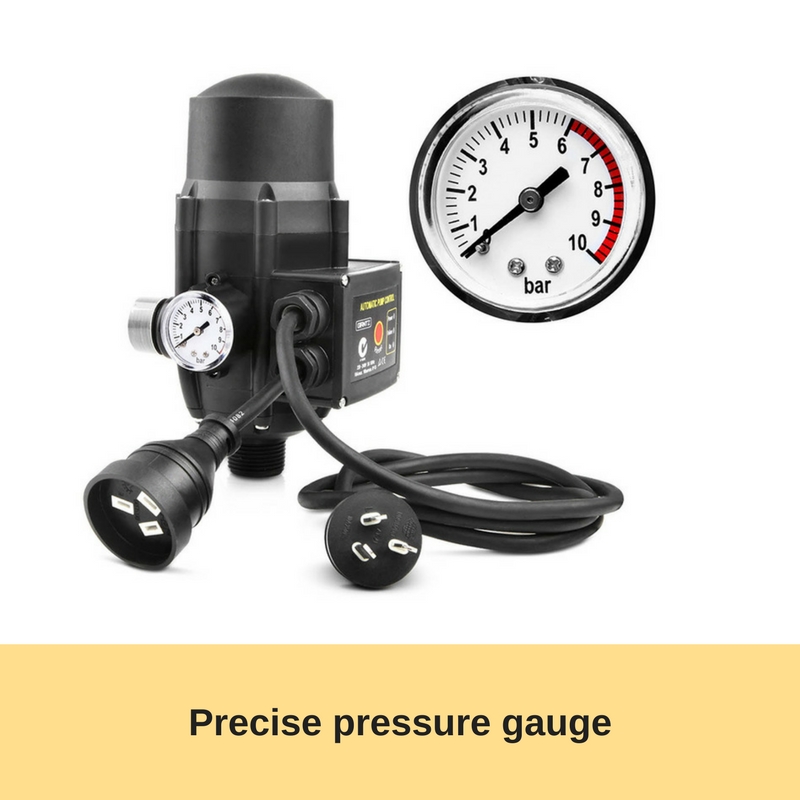

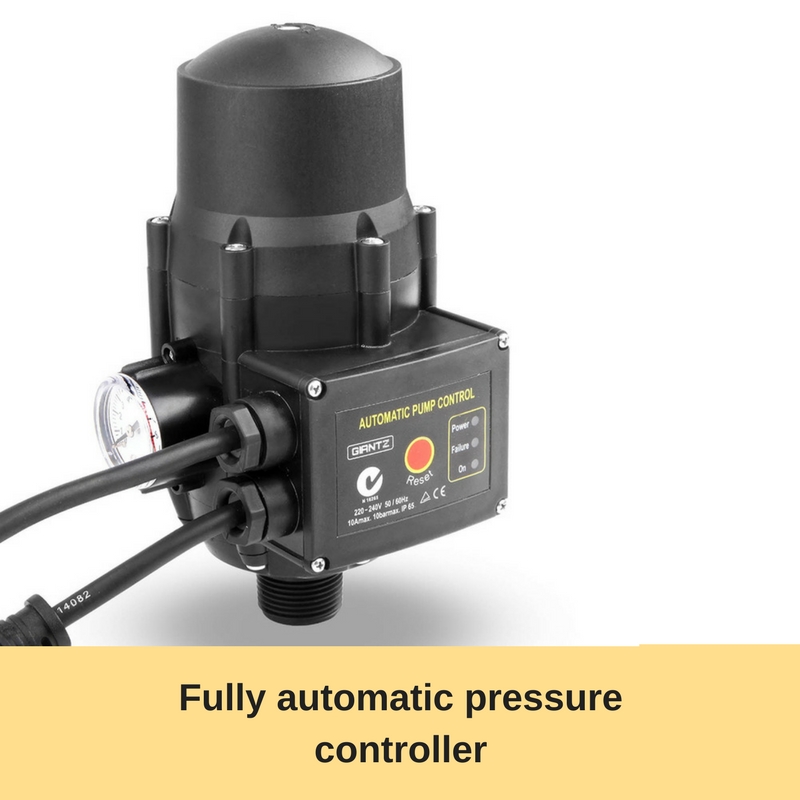

Fully automatic pressure controller
-

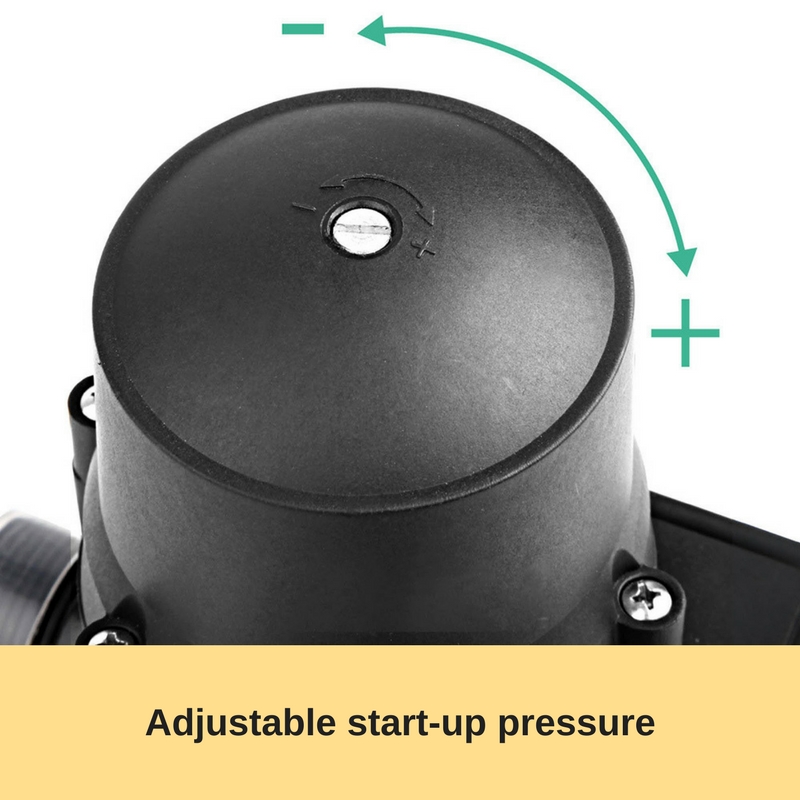

Adjustable start-up pressure
-

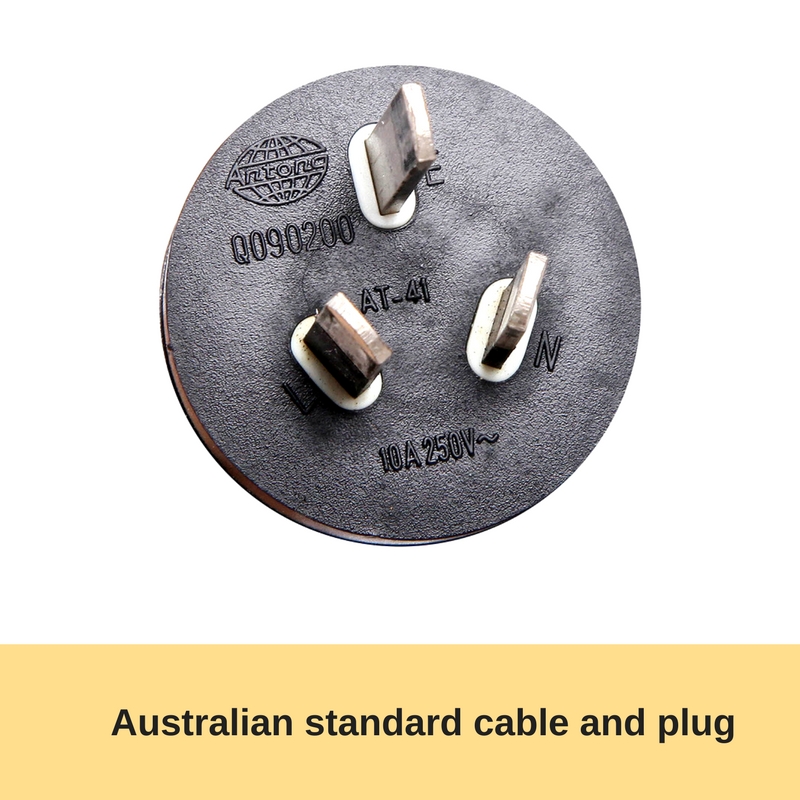

Australian standard cable and plug
PUMP
SPECIFICATIONS
-
Maximum Power: 2500W / 3.5HP
-
Maximum Flow: 150L/min, 9,000L/hr
-
Maximum Head: 64m
-
Stage: 5 stages
-
Plug & Cord: SAA 250V/10A *0.6m
-
Brass connector: 1″
-
Inlet/outlet: 1″
-
Suction height: 9m
-
Casing: stainless steel
-
Motor: Copper wire
-
Protection class: IP44
-
Mechanical Seal: Ceramic/ Carbon
CONTROLLER
SPECIFICATIONS
-
Voltage: 220/240V
-
Frequency: 50/60Hz
-
Maximum current: 10A
-
Maximum water temperature: 60 degrees
-
Starting pressure: 1.5-3 bar
-
Maximum. Pressure for use: 10 bar
-
Protection grade: IP65
-
Inlet and outlet size: 1″ (25mm)
-
Dimensions: 22 x 15 x 15cm
-
Color: Black
-
Weight: 1.5kg
PACKAGE CONTENTS
-
1 x 5 Stage Pool Pump
-
1 x Pump Controller
